Landau-Zener Tunnelling and Zener Breakdown

Two levels swept through an avoided crossing,

\[H(t) = \frac{\alpha t}{2}\sigma_z + \Delta\sigma_x\, ,\]

end up in the other adiabatic level with the probability found in 1932 by Landau, Zener, Stückelberg and Majorana,

\[P = e^{-2\pi\Delta^2/\alpha}\qquad(\hbar = 1)\, :\]

a slow sweep follows the adiabatic level, a fast one jumps the gap \(2\Delta\). Zener (1934) applied it to a crystal in a uniform field, where the Bloch momentum sweeps through the Brillouin zone, \(\dot k = F\). At the zone edge two bands nearly cross, and a Bloch-oscillating electron (see the Bloch oscillations example) tunnels into the next band each time it reaches the gap: Zener breakdown. In a binary chain (hopping \(t\), onsite energies \(\pm\delta\)), the folded bands \(\pm2t\cos k\) cross at \(k = \pi/2\) with relative slope \(\alpha = 4tF\) and are coupled by \(\delta\), so

\[P_Z = e^{-\pi\delta^2/(2tF)}\, .\]

evolution_operator() gives the time-ordered evolution of the two-level sweep, and Propagation evolves a wavepacket in the tilted binary chain.

import numpy as np
import matplotlib.pyplot as plt

from tbkit.floquet import evolution_operator
from tbkit.lattice import Lattice
from tbkit.plot import Plot
from tbkit.system import System
from tbkit.propagation import Propagation

Two levels swept through an avoided crossing

The sweep runs from \(t = -T/2\) to \(T/2\), long enough for the levels to end far apart. The evolution over the sweep is the one-period evolution operator of the drive, with “period” the sweep time.

sz = np.diag([1., -1.])
sx = np.array([[0., 1.], [1., 0.]])
delta = 0.5
sweep = 400.

rates = np.array([1., 2., 4., 8.])
p_lz = []
for alpha in rates:
    u = evolution_operator(lambda t, a=alpha: a * (t - sweep / 2) / 2 * sz + delta * sx, sweep, 40000)
    # starting in the diabatic level |0> (the lower adiabatic level at t = -T/2),
    # staying in it means jumping to the upper adiabatic level
    p_lz.append(abs(u[0, 0]) ** 2)
p_lz = np.array(p_lz)
p_formula = np.exp(-2 * np.pi * delta ** 2 / rates)
print('Landau-Zener probability:', np.round(p_lz, 4), ' formula:', np.round(p_formula, 4))
assert np.allclose(p_lz, p_formula, atol=5e-3)

Landau-Zener probability: [0.2059 0.4536 0.6745 0.8222]  formula: [0.2079 0.4559 0.6752 0.8217]

Zener breakdown between two bands

A broad wavepacket starts at the bottom of the lower band (\(k = \pi\)). After one Bloch period, \(T_B = \pi/F\) for the two-site unit cell, it has crossed the gap at the zone edge once; the weight it has left in the upper band is the Zener probability. The tilt is centred on the packet, so that the Crank-Nicolson step sees only small onsite energies.

t, d, n = 1., 0.3, 600
x = np.arange(n)
x0 = n // 2
lat = Lattice(unit_cell=[{'tag': 'a', 'r0': (0., 0.)}], prim_vec=[(1., 0.)])
lat.get_lattice(n1=n)


def binary_chain(force):
    '''Hopping t, onsite energies +-d, and a uniform force centred on x0.'''
    sys = System(lat)
    sys.set_hopping([{'n': 1, 't': t}])
    sys.set_onsite({'a': 0.})
    sys.set_onsite_def({i: d * (-1) ** i + force * (i - x0) for i in range(n)})
    sys.get_ham()
    return sys

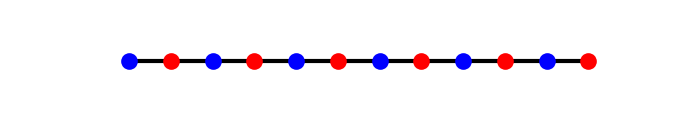

The binary chain: one hopping \(t\) and onsite energies alternating between \(+d\) and \(-d\) (two colours), so a two-site unit cell and two bands separated by a gap \(2d\) at the zone edge.

lat_vis = Lattice(unit_cell=[{'tag': 'a', 'r0': (0., 0.)}, {'tag': 'b', 'r0': (1., 0.)}],
                        prim_vec=[(2., 0.)])
lat_vis.get_lattice(n1=6)
vis = System(lat_vis)
vis.set_hopping([{'n': 1, 't': t}])
fig_lat = Plot(vis).lattice(plt_hop=True, ms=12, figsize=(7, 1.2))

The packet, projected onto the lower band, under five forces:

bands = binary_chain(0.)
bands.get_eig(eigenvec=True)
lower, upper = bands.rn[:, bands.en.real < 0], bands.rn[:, bands.en.real > 0]
psi0 = np.exp(-(x - x0) ** 2 / (4 * 20. ** 2)) * np.exp(1j * np.pi * x)
psi0 = lower @ (lower.conj().T @ psi0)
psi0 /= np.linalg.norm(psi0)

dz = 0.02
forces = np.array([0.05, 0.1, 0.2, 0.4, 0.8])
p_zener = []
for force in forces:
    prop = Propagation(lat)
    prop.get_propagation(binary_chain(force).ham, psi0, steps=int(np.pi / force / dz) + 1, dz=dz)
    p_zener.append(np.sum(abs(upper.conj().T @ prop.prop[:, -1]) ** 2))
p_zener = np.array(p_zener)
p_zener_formula = np.exp(-np.pi * d ** 2 / (2 * t * forces))
print('Weight tunnelled into the upper band:', np.round(p_zener, 4),
          ' formula:', np.round(p_zener_formula, 4))
assert np.allclose(p_zener, p_zener_formula, atol=0.01)

Weight tunnelled into the upper band: [0.0596 0.2443 0.4946 0.7033 0.836 ]  formula: [0.0592 0.2432 0.4932 0.7023 0.838 ]

Each passage through the gap, at half-integer multiples of \(T_B\), moves weight between the bands. From the second passage on, the two paths interfere (Landau-Zener-Stückelberg interference), so a jump can go either way.

force = 0.2
prop = Propagation(lat)
prop.get_propagation(binary_chain(force).ham, psi0, steps=int(3 * np.pi / force / dz), dz=dz)
times = dz * np.arange(prop.steps)
upper_weight = np.sum(abs(upper.conj().T @ prop.prop) ** 2, axis=0)

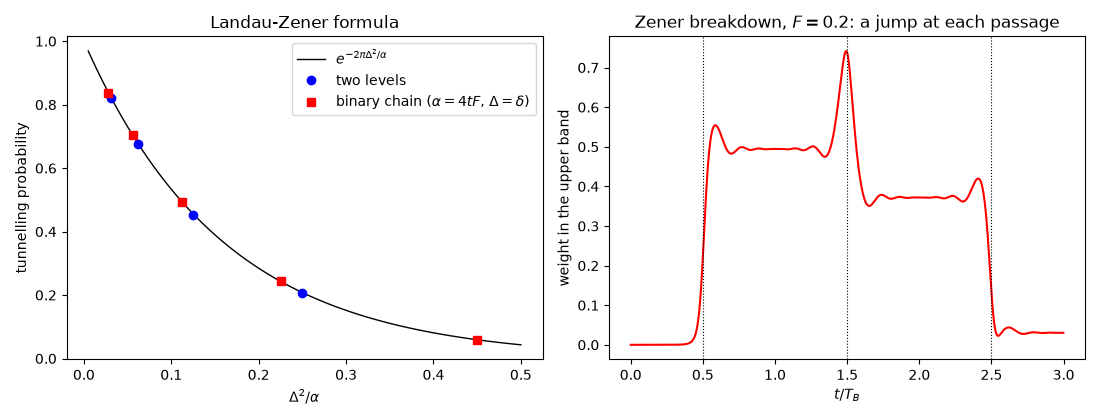

fig, axes = plt.subplots(1, 2, figsize=(11, 4.2))
# the two problems on one axis: P depends only on Delta^2 / alpha
ratio = np.linspace(0.005, 0.5, 100)
axes[0].plot(ratio, np.exp(-2 * np.pi * ratio), 'k', lw=1, label=r'$e^{-2\pi\Delta^2/\alpha}$')
axes[0].plot(delta ** 2 / rates, p_lz, 'ob', label='two levels')
axes[0].plot(d ** 2 / (4 * t * forces), p_zener, 'sr', label=r'binary chain ($\alpha = 4tF$, $\Delta = \delta$)')
axes[0].set_xlabel(r'$\Delta^2/\alpha$')
axes[0].set_ylabel('tunnelling probability')
axes[0].legend()
axes[0].set_title('Landau-Zener formula')
axes[1].plot(times * force / np.pi, upper_weight, 'r')
for passage in (0.5, 1.5, 2.5):
    axes[1].axvline(passage, color='k', lw=0.8, ls=':')
axes[1].set_xlabel(r'$t / T_B$')
axes[1].set_ylabel('weight in the upper band')
axes[1].set_title(r'Zener breakdown, $F = 0.2$: a jump at each passage')
fig.set_layout_engine('tight')
