Hanks and Kanamori’s moment magnitude (1979)

Thomas Hanks and Hiroo Kanamori defined a magnitude from the seismic moment so that it matches the older scales where they work and keeps growing for great earthquakes. Each unit of magnitude multiplies the moment by 10^1.5, about 32. The SI form uses Mw = (2/3)(log10 M0 - 9.1).

import matplotlib.pyplot as plt
import numpy as np

from earthsciencekit.seismology import moment_from_magnitude, moment_magnitude

magnitude = np.linspace(2, 9.5, 100)
moment = moment_from_magnitude(magnitude)
np.testing.assert_allclose(moment_magnitude(moment), magnitude)
assert np.isclose(moment_from_magnitude(7) / moment_from_magnitude(6), 10**1.5)

events = {"Niigata 1964": 3e20, "Chile 1960": 2e23, "Tohoku 2011": 4e22}
fig, ax = plt.subplots()
ax.semilogy(magnitude, moment)
for name, m0 in events.items():
    ax.semilogy(moment_magnitude(m0), m0, "o")
    ax.annotate(name, (moment_magnitude(m0), m0), textcoords="offset points", xytext=(-80, 5))

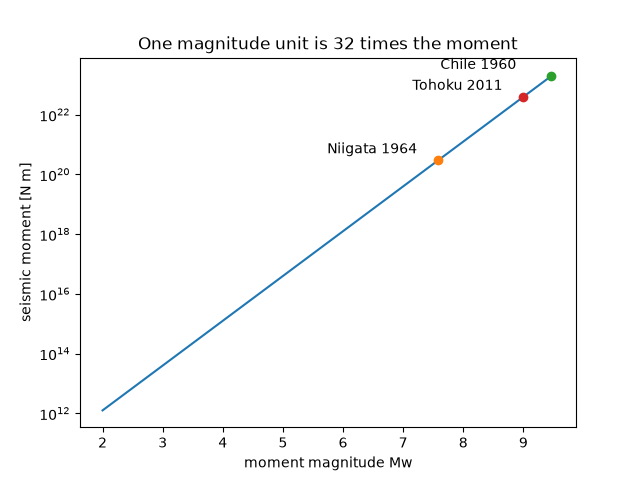

ax.set(xlabel="moment magnitude Mw", ylabel="seismic moment [N m]", title="One magnitude unit is 32 times the moment")

plt.show()
